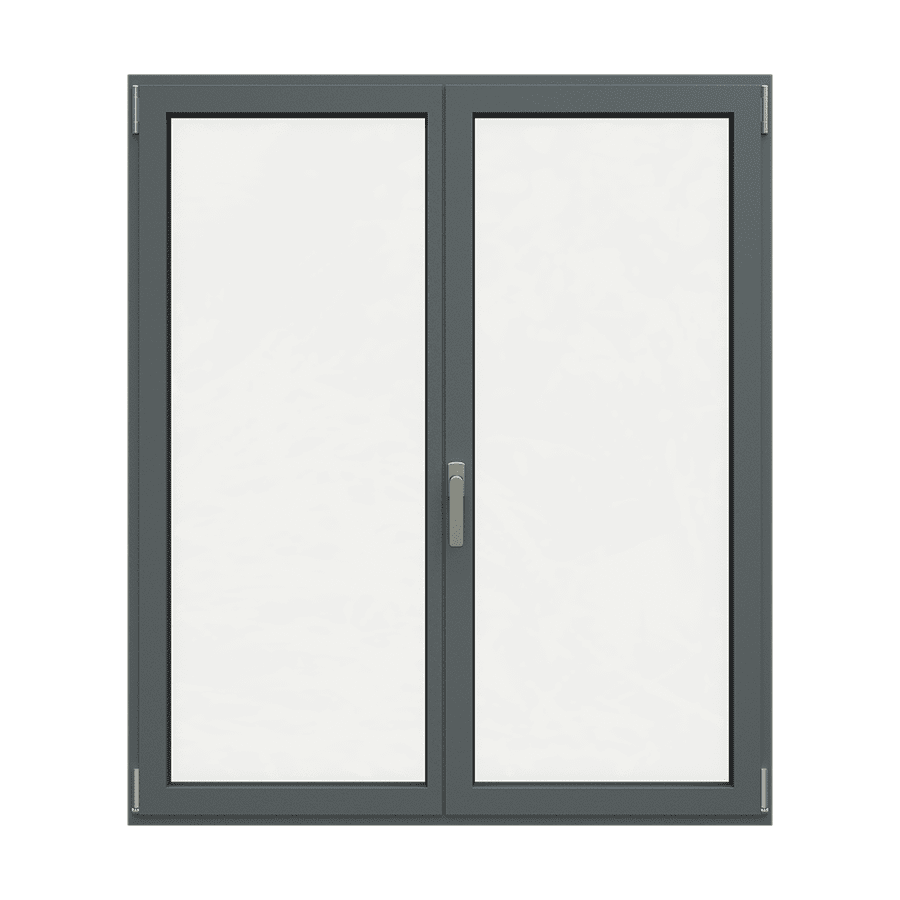

5Stars View Aluminium Windows
Modern minimalist design with 70mm construction, offering optimal thermal and sound insulation

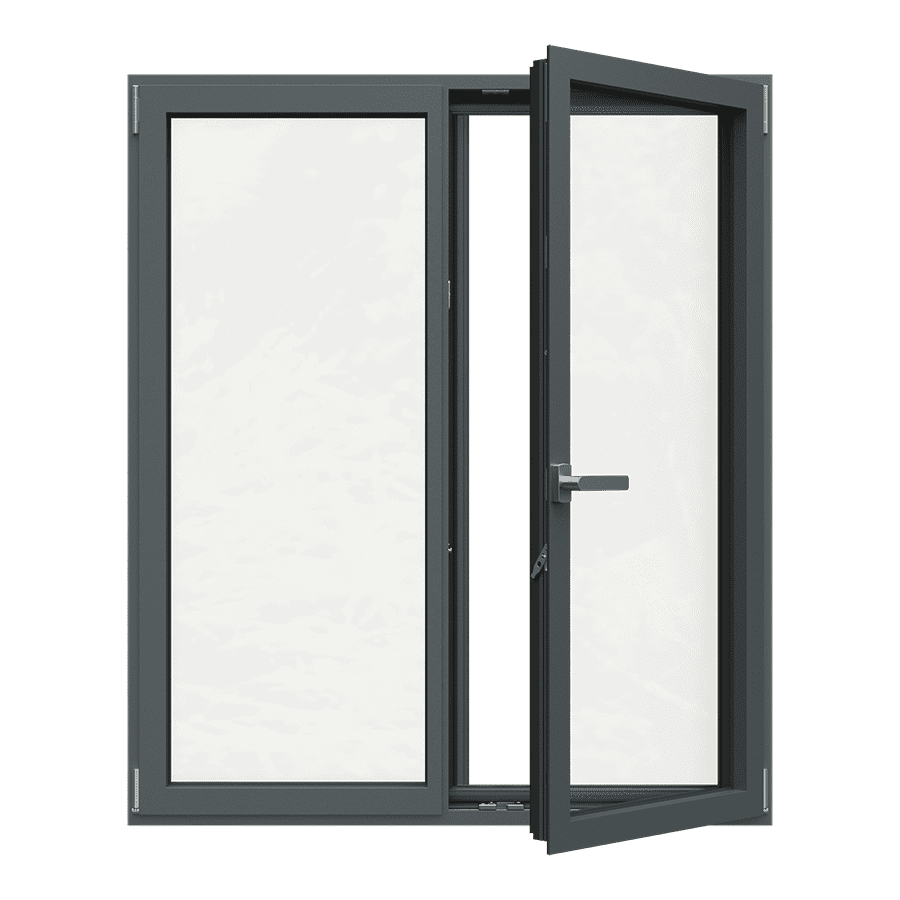

High performance, wide view
6Stars View Aluminium windows are perfect for modern buildings, offering high-performance thermal and sound insulation, with a concealed sash (not visible from the outside).
All the advantages of 5Stars View Aluminium Windows
Design
Modern design with optional hidden hinges, allowing a 180-degree opening, and an optional “invisible” handle.
Strength and durability
Materials that withstand the elements and are engineered to last, 100% recyclable.
Customizations
Windows perfectly suited for new builds, with a range of customisation options.

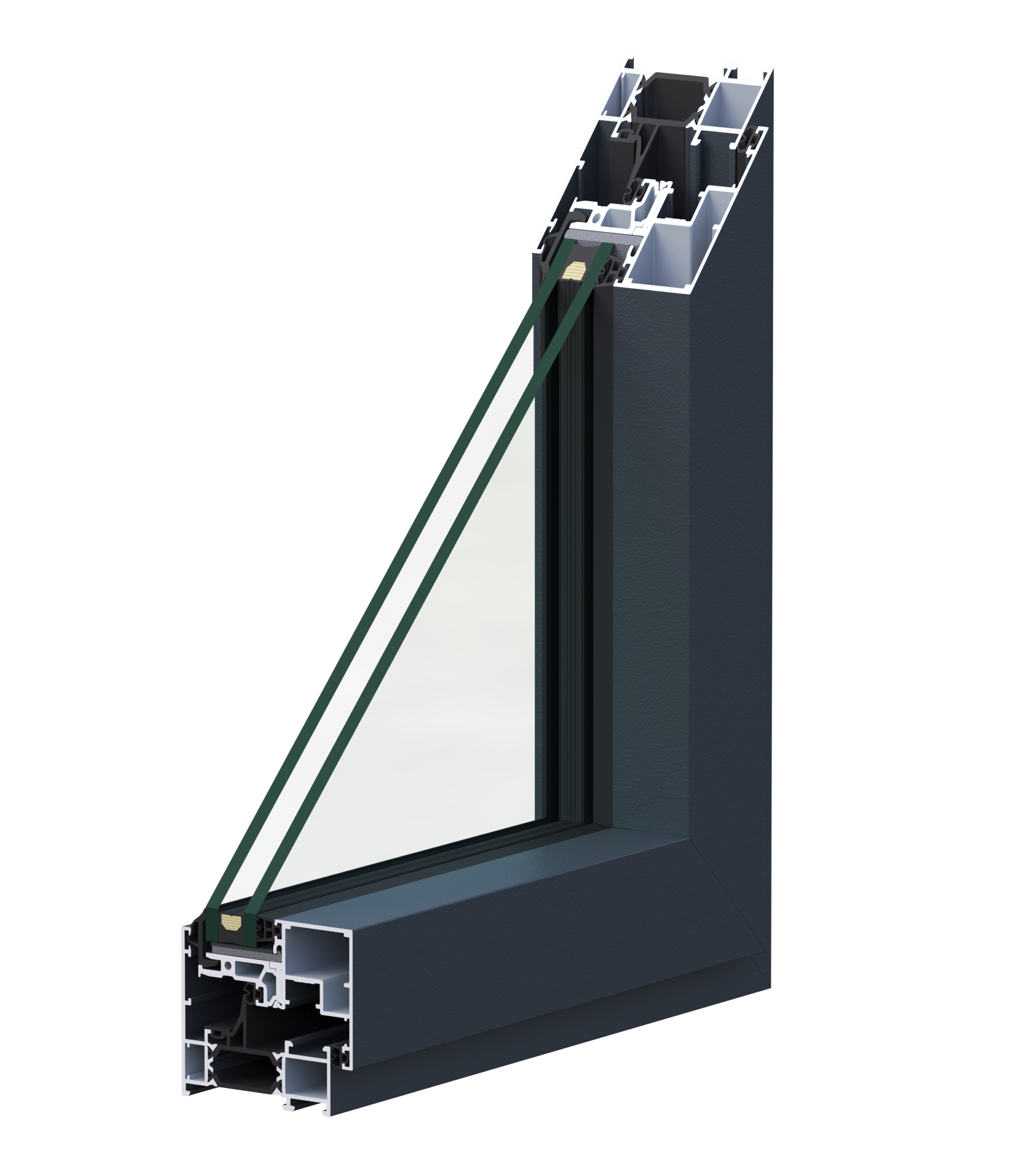

Technical details of 5Stars View Aluminium Windows
Thermal Insulation
- Thermally broken Aluminium profiles
Uw = 1.00W/m²K for triple glazed unit with Ug = 0.6W/m²K
Uw = 1.33W/m²K for double glazed unit with Ug = 1.0W/m²K - Profile width: 70 mm (installation depth)
- Wall thickness of the aluminium profiles ≥ 1.5 mm
* The Uw value is calculated for a standard window measuring 1230 x 1480 mm with a surface area of 1.82 m² and a warm-edge spacer. Uw and Ug values may vary depending on the insulating glazing unit used. For accurate values, please refer to QFORT’s specifications.
Sound Insulation
- Glazing units available: from 26 mm to 40 mm
Design
- Minimalist design with straight lines.
- Hidden sash (not visible from the outside).
- Available with optional concealed hinges allowing a 180-degree opening. Also available with the option for an “invisible” handle.

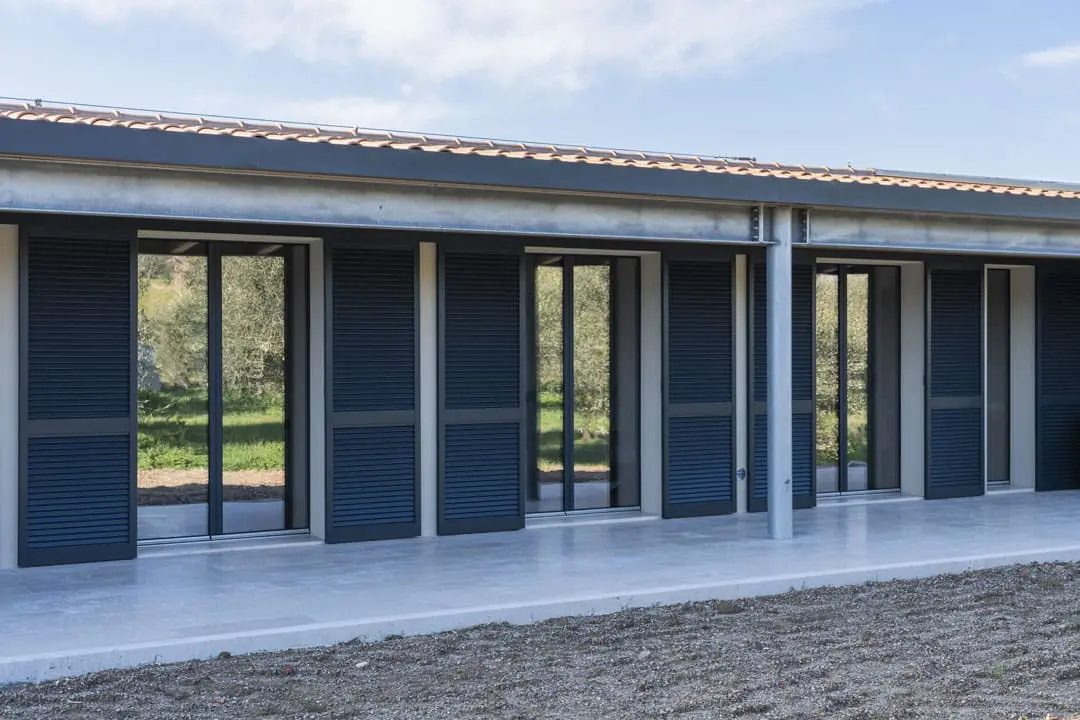

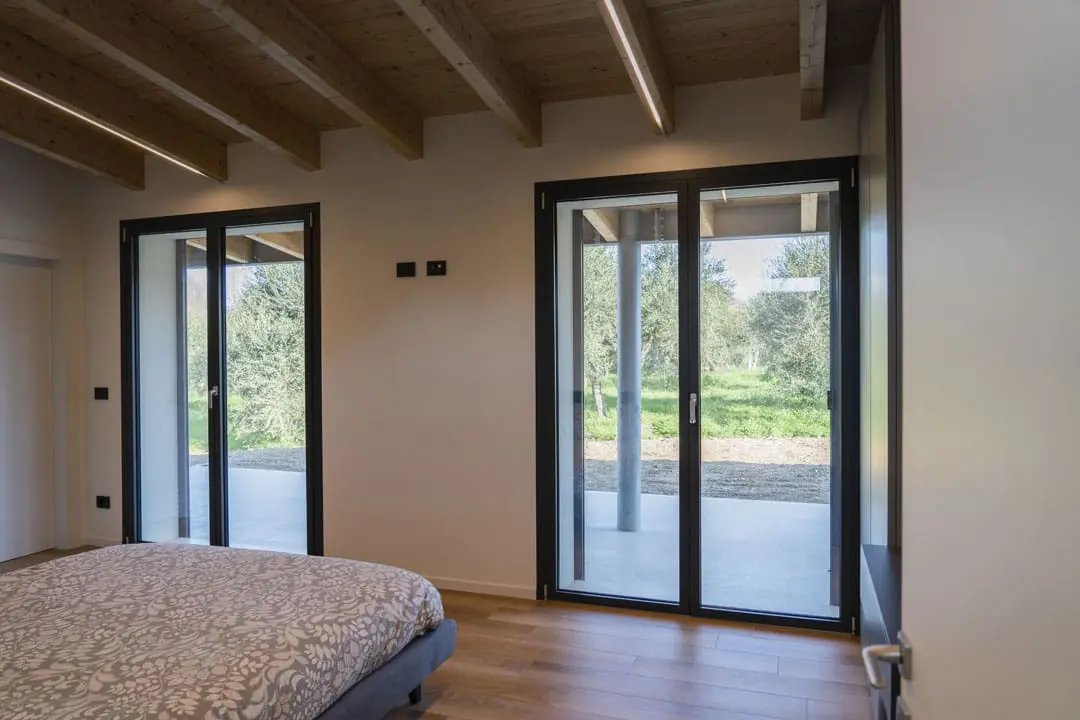

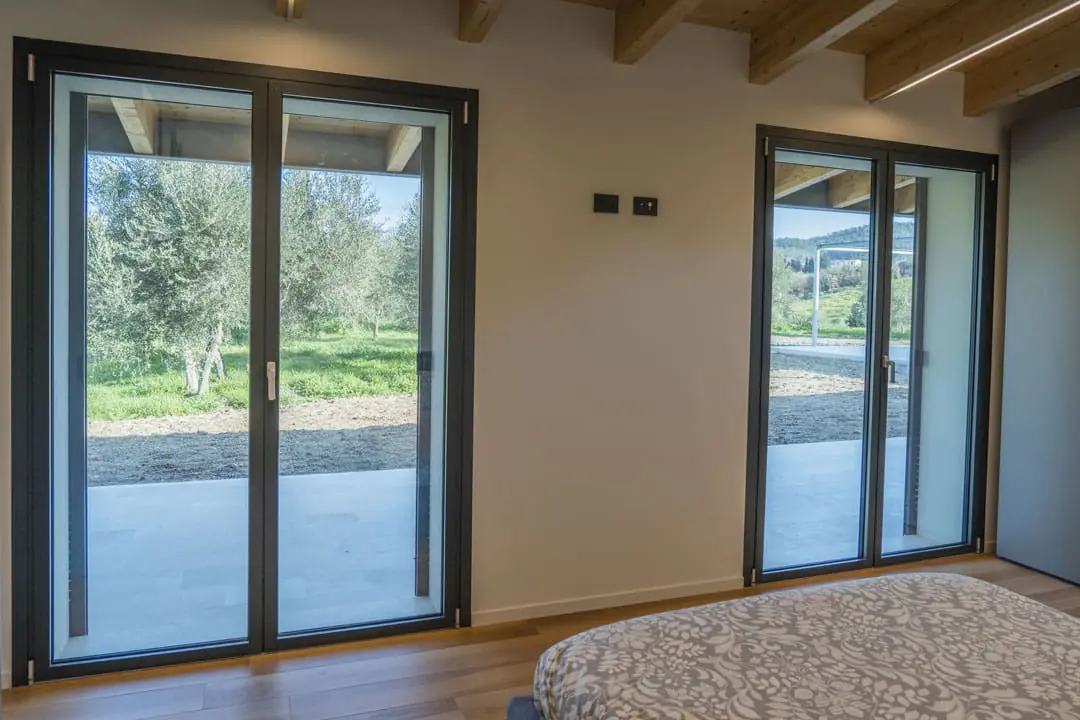

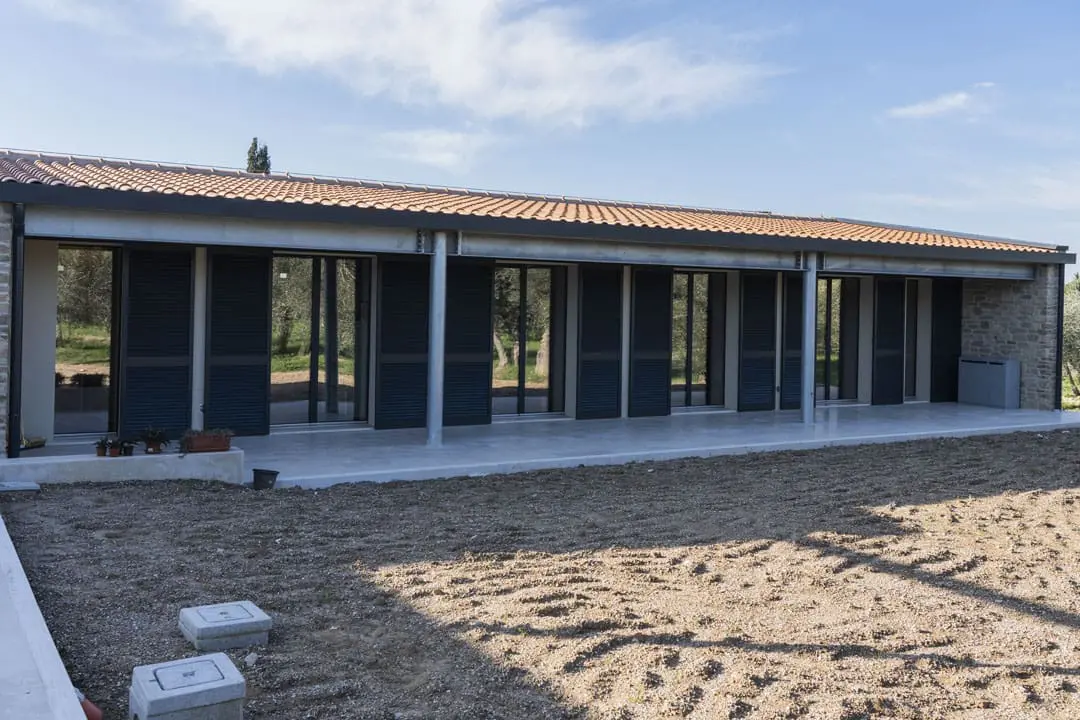

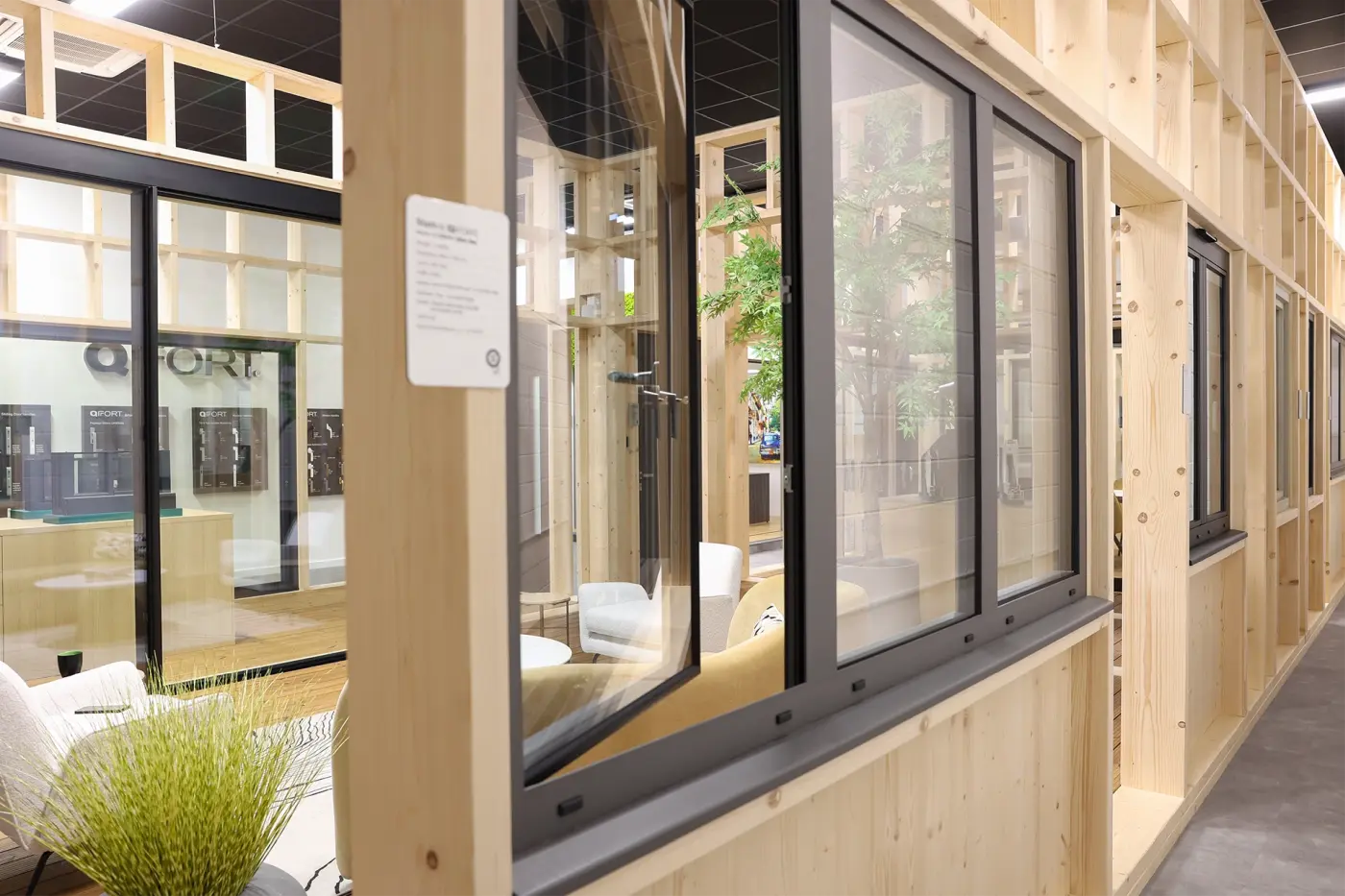

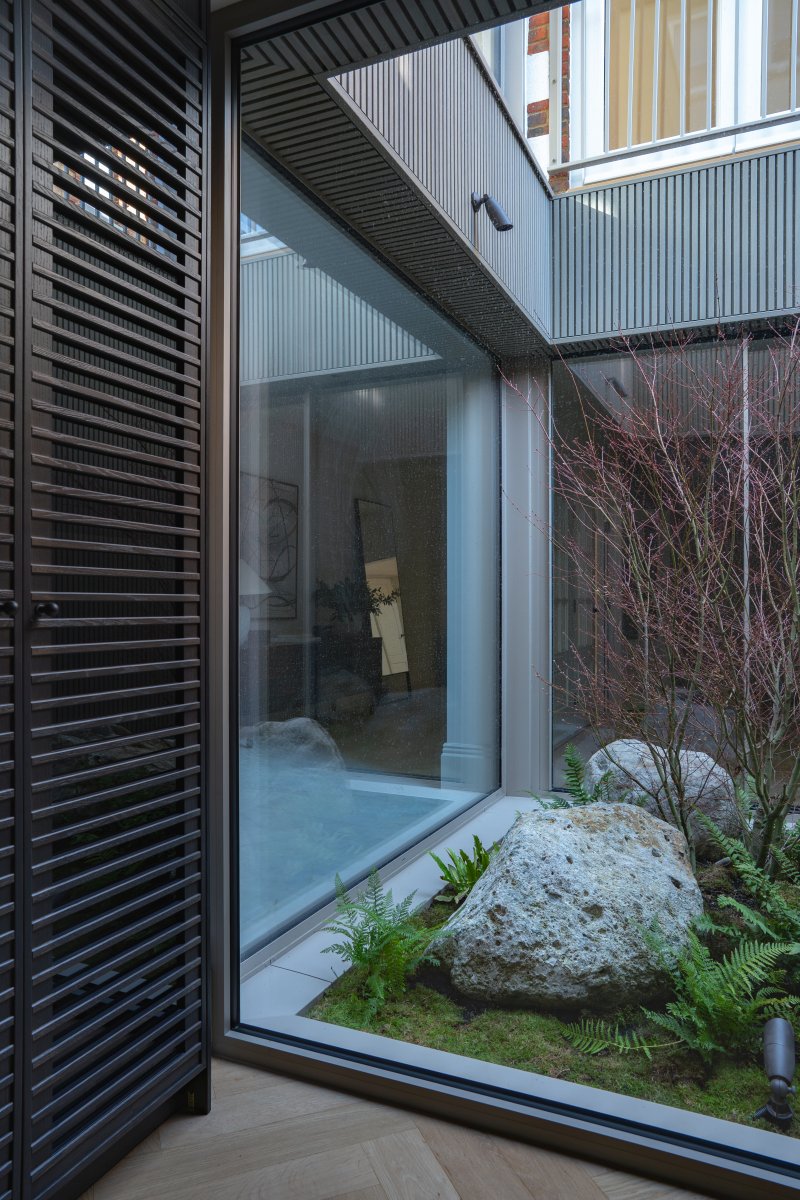

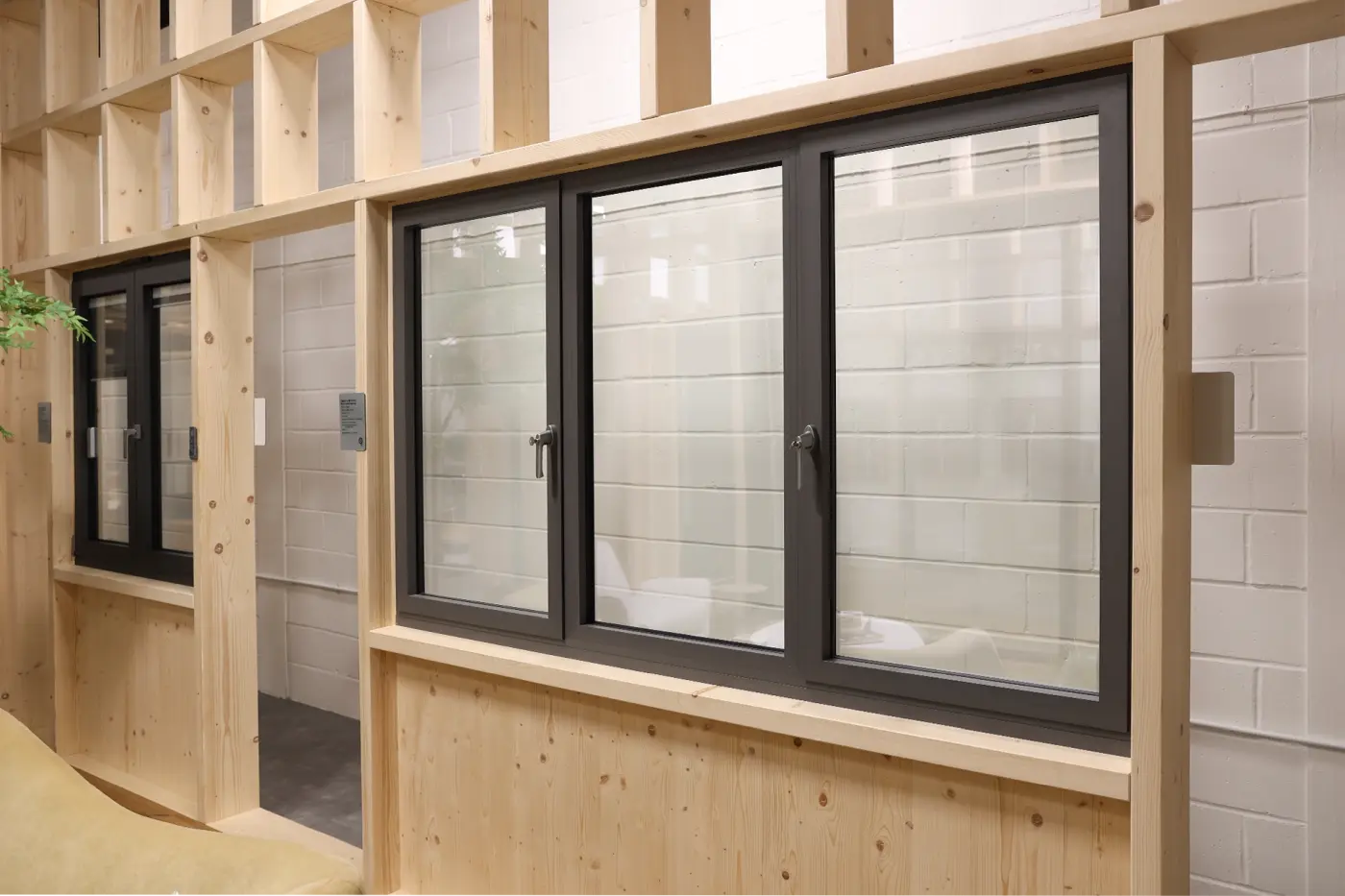

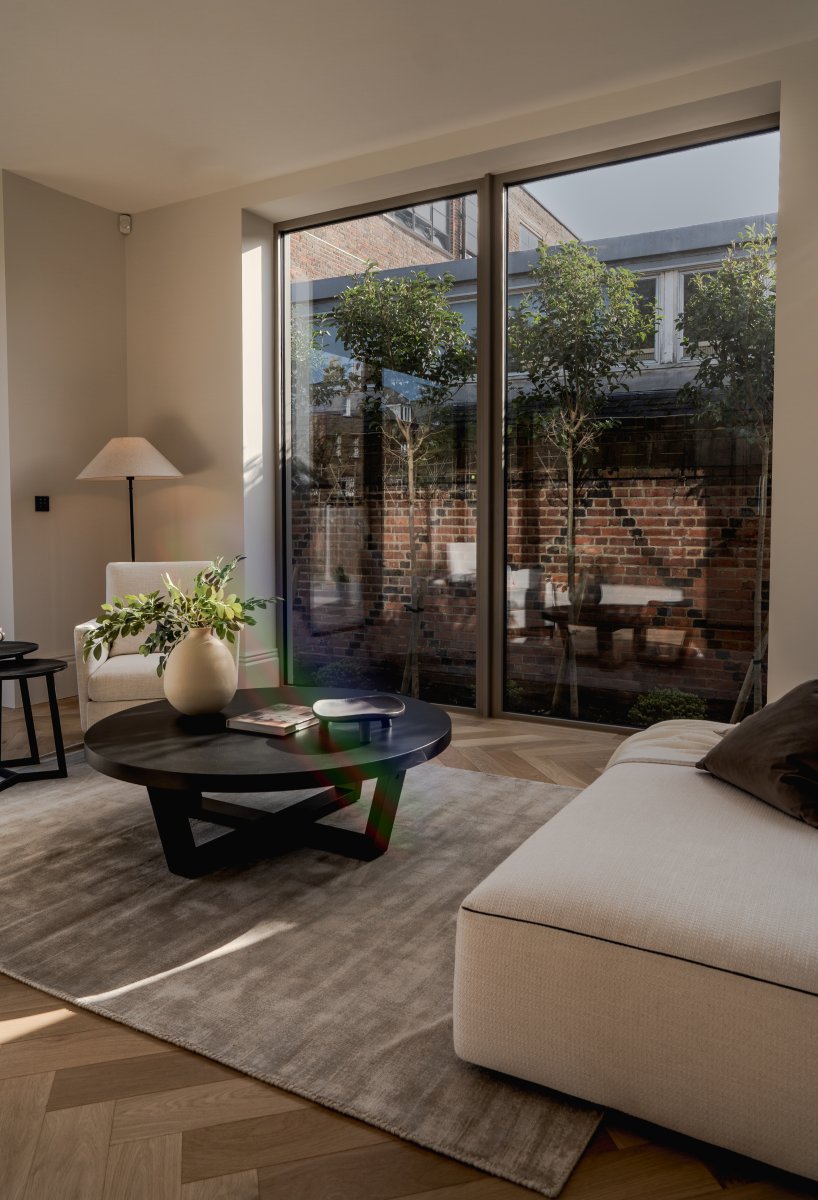

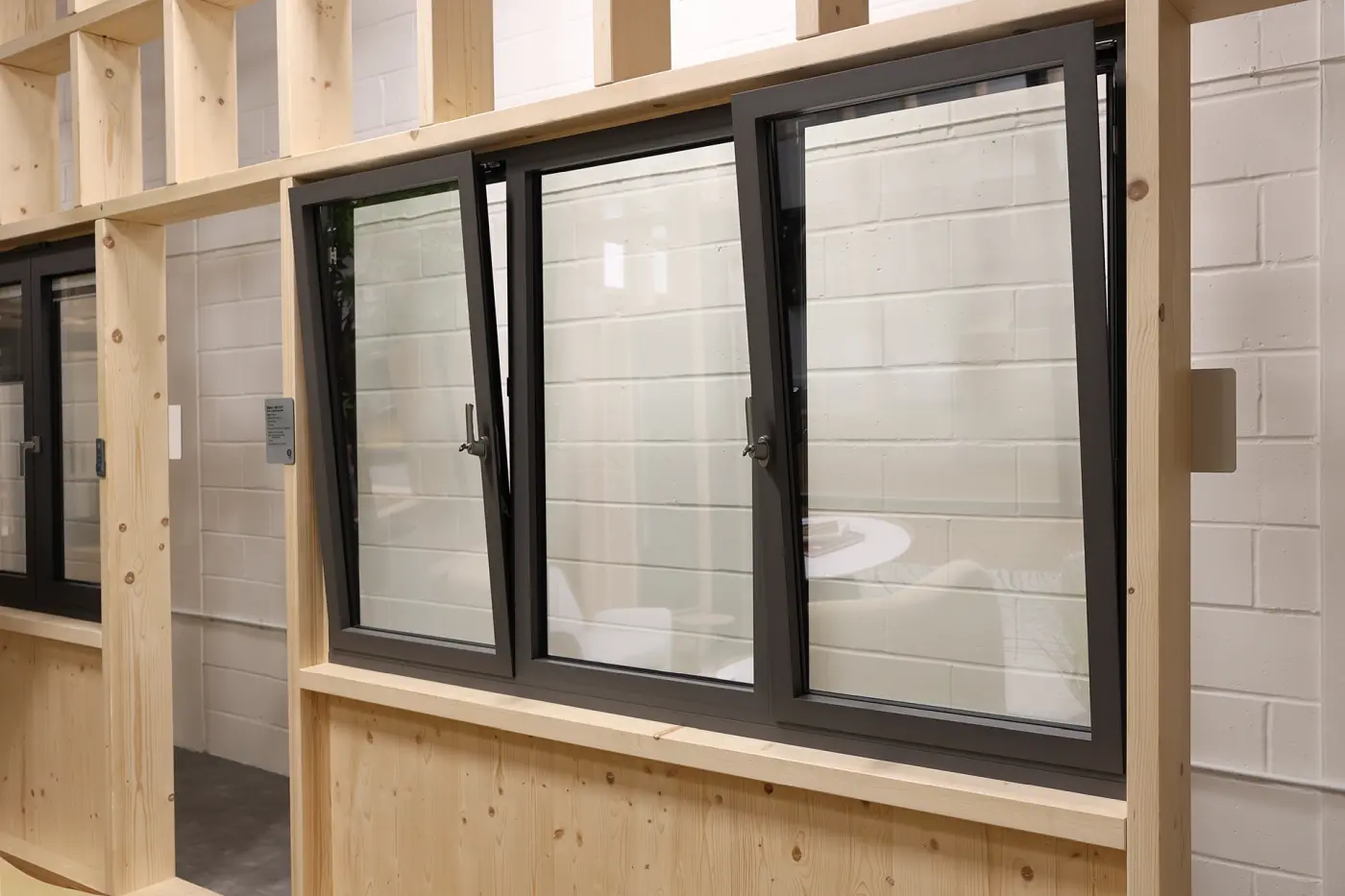

Be inspired by the design of 5Stars View Aluminium Windows
All the customization options of 5Stars View Aluminium Windows
Colours
Choose from a wide range of colours, including two-tone interior/exterior profiles.
Glass
The option to glaze up to 40 mm allows for the use of energy-efficient glass and larger thicknesses, providing the system with excellent acoustic and thermal performance.

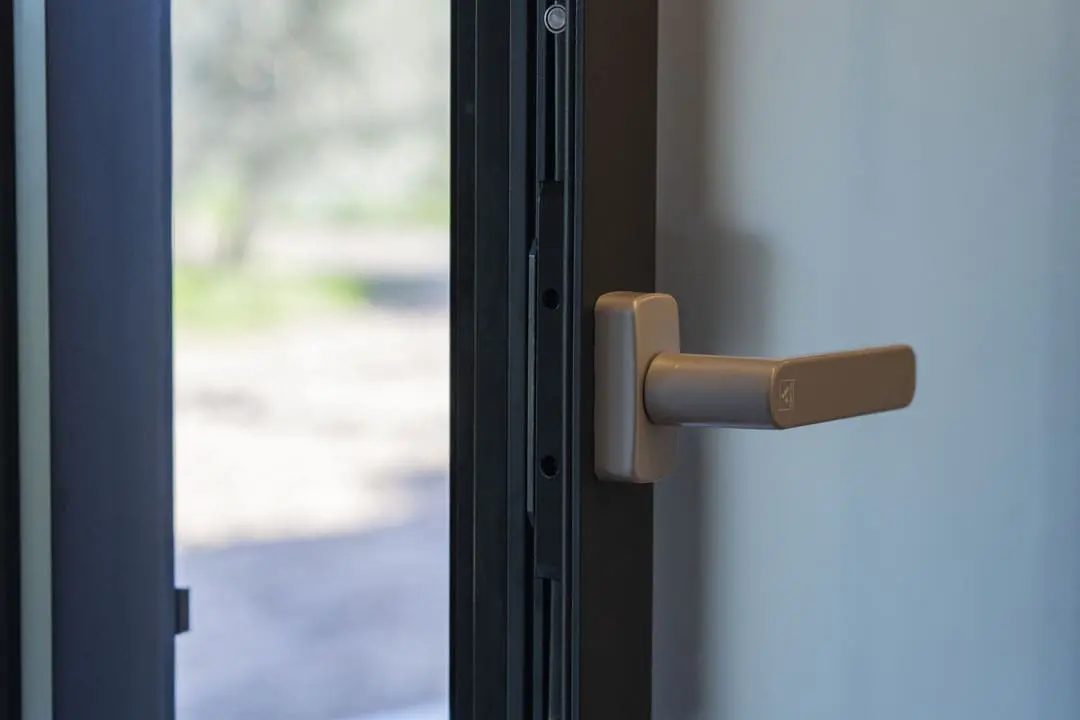

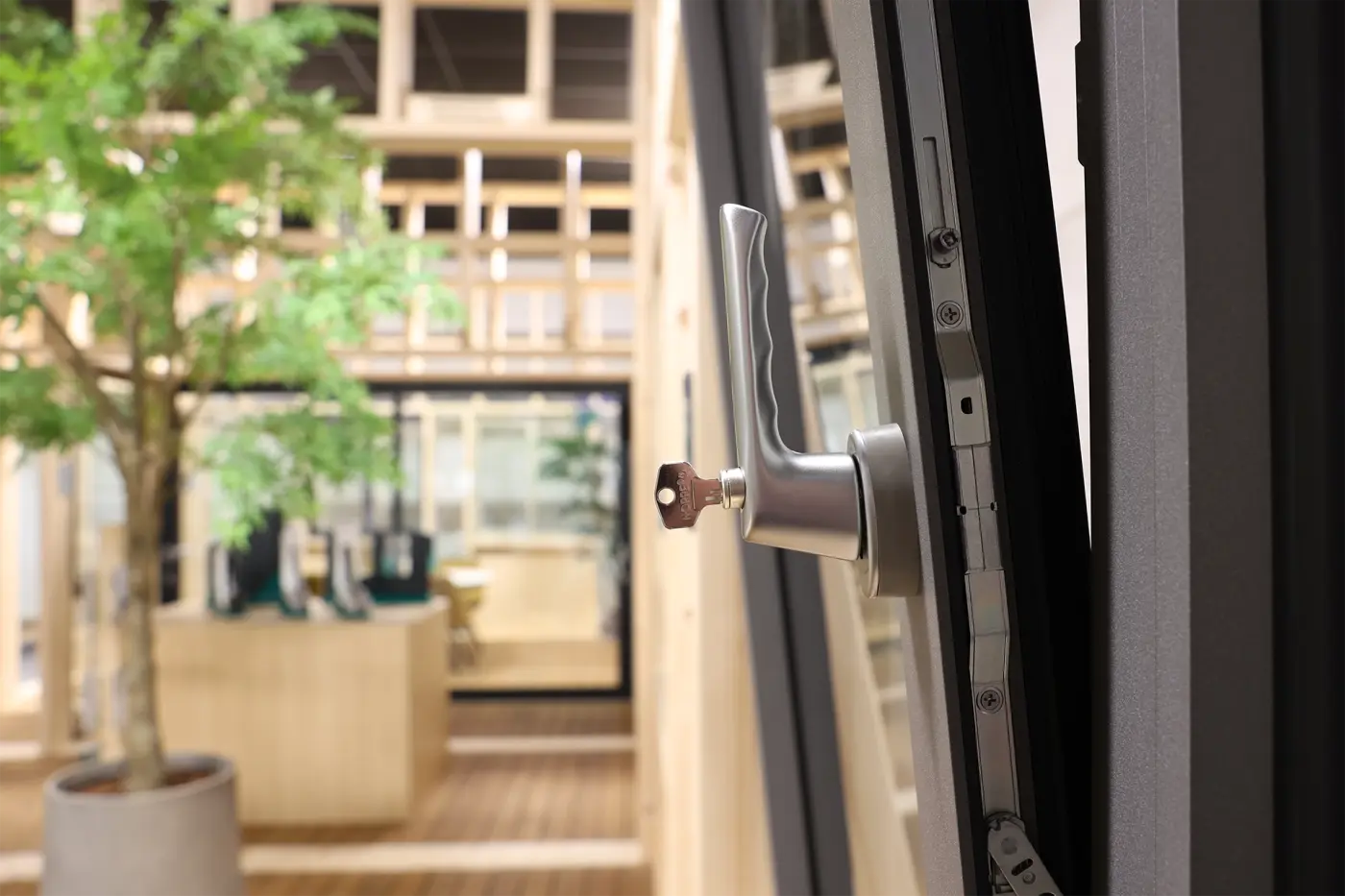

Hardware
The strength and durability of QFORT windows are key to achieving top performance!
Ask for advice
Looking for windows with excellent thermal and sound insulation? QFORT offers expert guidance to help you build your dream home. Our certified partners will assist you in choosing the right materials, the most efficient opening or sliding systems, and provide all the information you need to make an informed decision.
